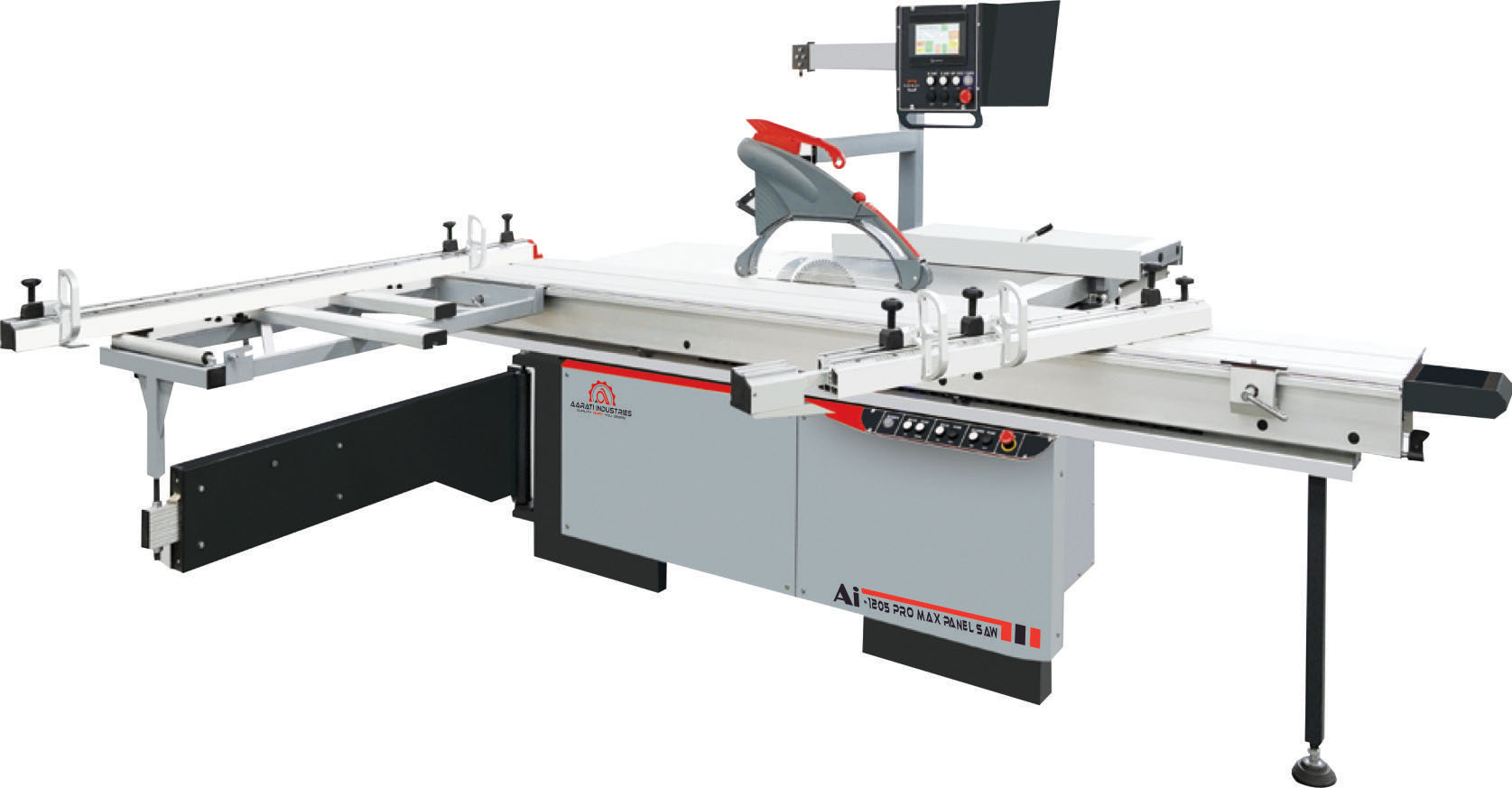

Panel Saw (AI-1205 Pro Max)

Salient Features

  • Precise cut with chip free cutting
  • Smart and heavy duty structure
  • Smart touch PLC Control Panel for easy operation
  • High precision and long life sliding table for work
  • Easy & Quick scoring unit up-down and lateral movement
  • Central lubrication system which gives smooth & precise movement
  • The machine body is processed by laser cutting.CNC bending machine which can assure the accuracy not easy to and be out of shape
  • The main saw assembly and scoring saw assembly with dust prevention

Technical Specifications

Dimension of sliding table 3200 × 435mm
Gross cut capacity 3200 mm
Width of Cut Between Saw Blade And Rip fence 1300 mm
Saw blade diameter 300 mm x 30 mm (250 - 350)
Height of cut 80/100 mm
Speed of main saw blade 3000 /4000/5000 mm
Tilting saw blade 90° - 45° Manual
Main motor 5.5 kw (7.5 HP)
Scoring saw blade diam 120 mm x 20 mm
Speed of scoring blade 8000 rpm
Scoring motor 0.75 kw (1.5 hp)
Saw unit up/down Automatic
Overall Dimensions 3250 x 3500x 870 mm
Total Power 9 HP
Weight 1300 kg
Voltage 415 V
