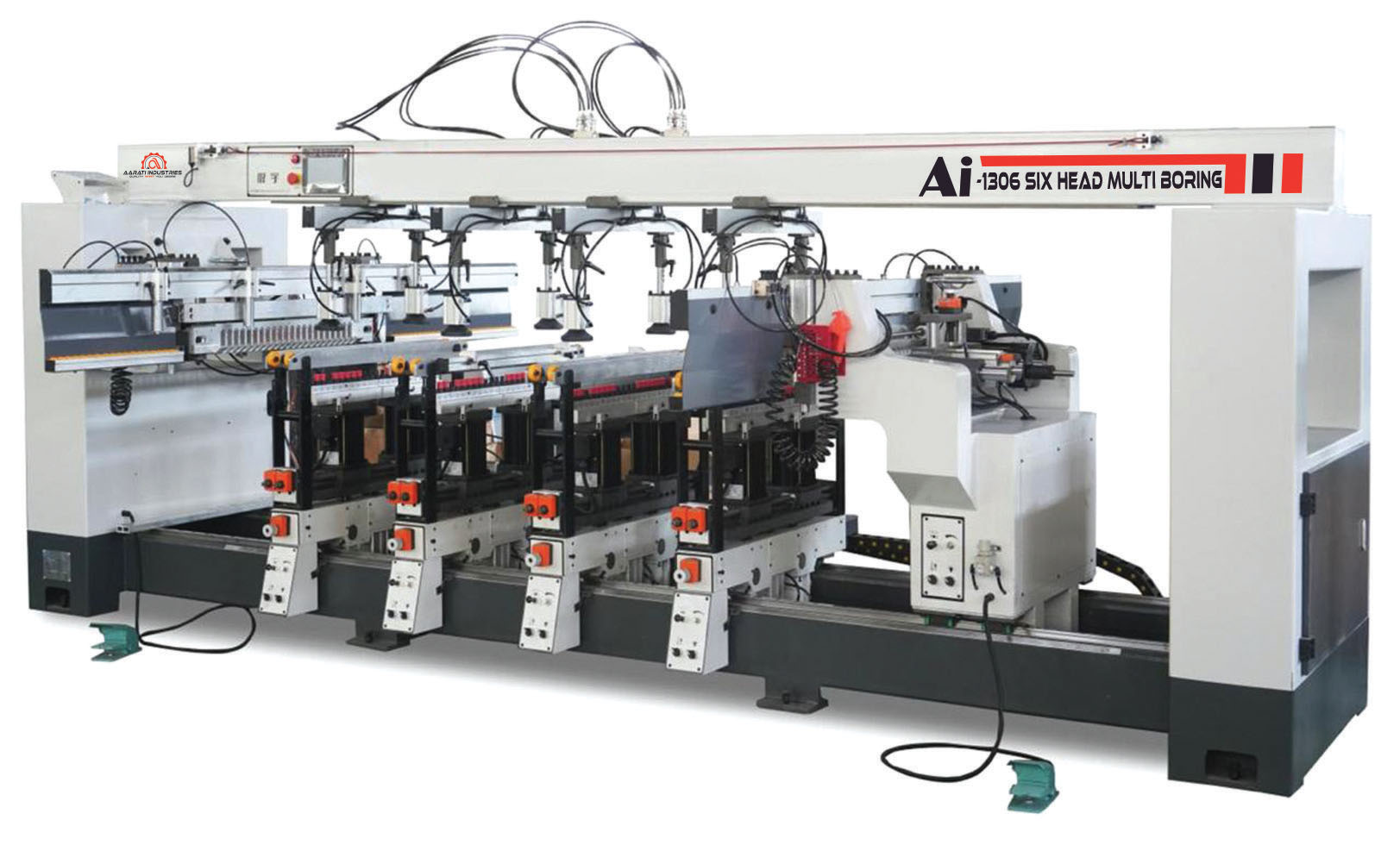

Multi Boring (Ai-1306)

Salient Features

  • Easy Setting of workpiese with instant & precised boring
  • User friendly smart touch PLC control Panel
  • Two vertical heads,sliding and rolling guides, rotate by 90

Technical Specifications

Max. Drill Diameter Max 35 mm D=13 mm
Max. Drilling Depth H Max = 60 mm
Max. Processing Pitch Max. (LxB) 3500x640mm
Min. Processing Pitch Min.(LxB) 135 x 32mm
Pitch of Drill Head 10mm
Spindle Speed 2840 rpm
Total Number of Drill Shaft 21x6=126
Total Power of Motor 9kw
Weight 1950kg
Machine Size 4350x2500x1650
