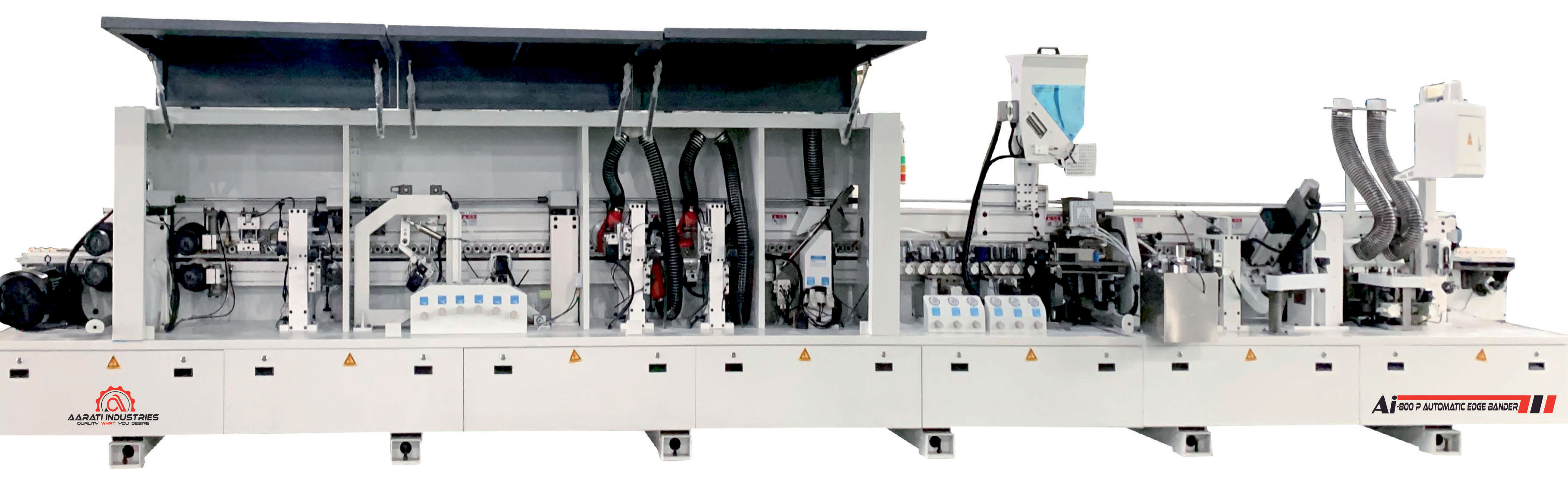

Automatic Edge Bander (Ai-800-P)

Salient Features

  • Stabilized production even at max feeding speed of 25mtr/min due to sturdy machine structure
  • Smart touch PLC Control Panel for convenient use.
  • Automctic up-down movement of pressure beam for thickness setting.
  • in-built safety AIR Tank to avoid dropping of air pressure during process.
  • Low maintenance m/c, easily replaceable and cost effective spares

Technical Specifications

Panel pasting Angle 45 & 90 Degree

Working Thickness Range

inclineed 45 Edge

Full Straight Edge



10 x 25mm

10 x 60mm

Working Size Width - Length

inclineed 45 Edge

Full Straight Edge



120 x 150 mm

80 x 120mm

Thickness For PVC/ABS in coil form

inclineed 45 Edge

Full Straight Edge



0.4 x 2.0

0.4 x 3.0
Feeding Speed 15-20-25 mtr/min
Working air Pressure 6 to 8 CFM
Total Power 30 kw
Machine Dimension (L x B x H) 9500 x 1100 x 1750 mm
Approx Net Weight 3000 kg
