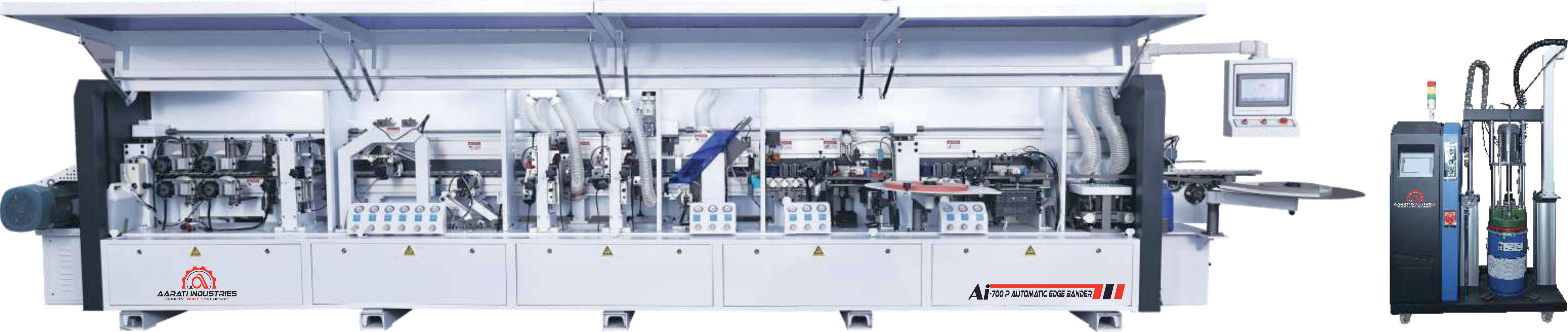

Automatic Edge Bander (Ai-700-P)

Salient Features

  • Stabilized production even at max feeding speed of 25 mtr/min due to sturdy machine structure
  • Smart touch PLC Control Panel for convenient use.
  • Automatic up-down movement of the pressure beam for thickness setting.
  • Built-in safety AIR Tank to avoid a drop in air pressure during the process.
  • Low maintenance m/c, easily replaceable, and cost-effective spares

Technical Specifications

Working Thickness 10-60mm
Min. Working Width 95mm
Min. Working Length 120mm
Band Strip Thickness 0.4-3mm
Feeding Speed 20-23-26 mtr/min
Working air Pressure 0.6 to 0.8 mpa kg/cm2
Total Motor Power 19.5 kw
Pre-Milling Motor 2 x 3 no/hp
Corner Radius Motor 2 x 0.5 no/hp
Machine Dimension (L x B x H) 8400 x 910 x 1540 mm
Fine Trimming Motor 2 x 1 no/hp
Approx Net Weight 2500 kg
