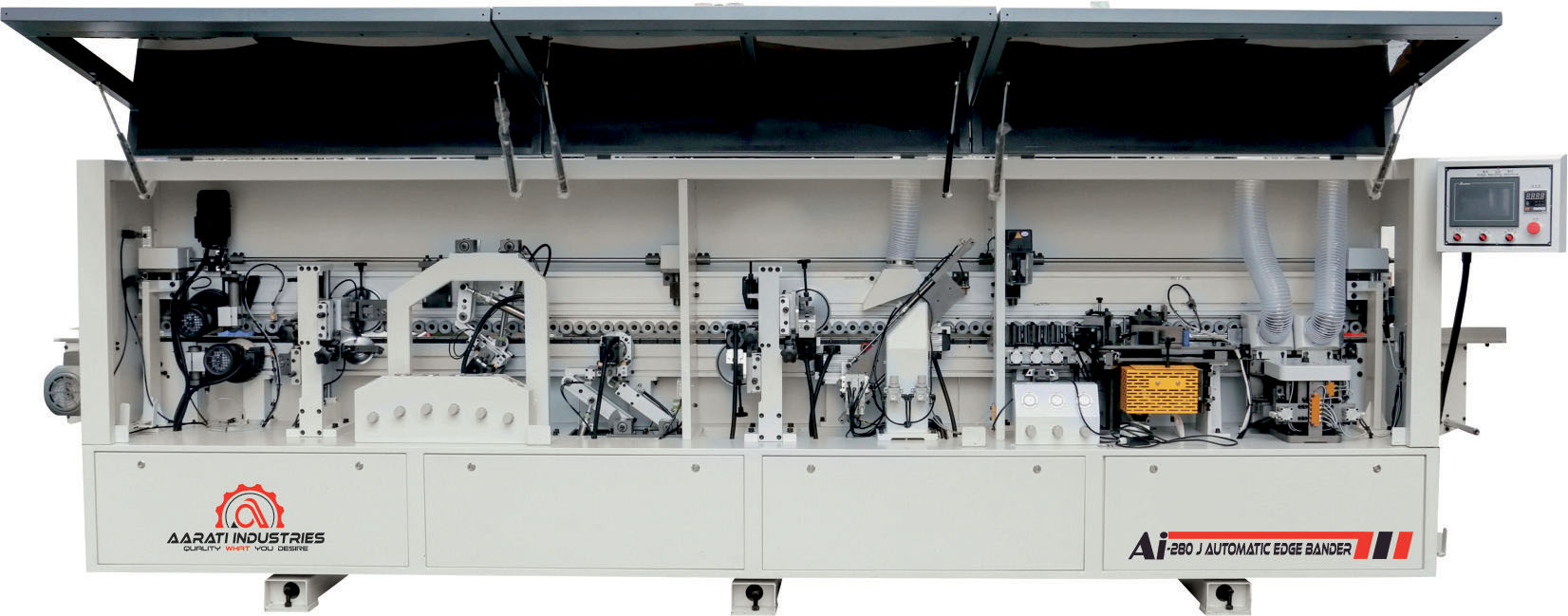

Automatic Edge Bander (Ai-280-J)

Salient Features

  • Stabilized production even at max feeding speed of 25 mtr/min due to sturdy machine structure
  • Smart touch PLC Control Panel for convenient use.
  • Automatic up-down movement of the pressure beam for thickness setting.
  • Built-in safety AIR Tank to avoid a drop in air pressure during the process.
  • Low maintenance m/c, easily replaceable and cost-effective spares

Technical Specifications

Working Thickness 10-60mm
Min. Working Width 60mm
Min. Working Length 150mm
Band Strip Thickness 0.4-3mm
Feeding Speed 12-16-20mtr/min
Working air Pressure 6 to 8 kg/cm2
Total Motor Power 12.5 kw
Machine Dimension (L x B x H) 5400x 700 x 1560 mm
Approx Net Weight 1600 kg
