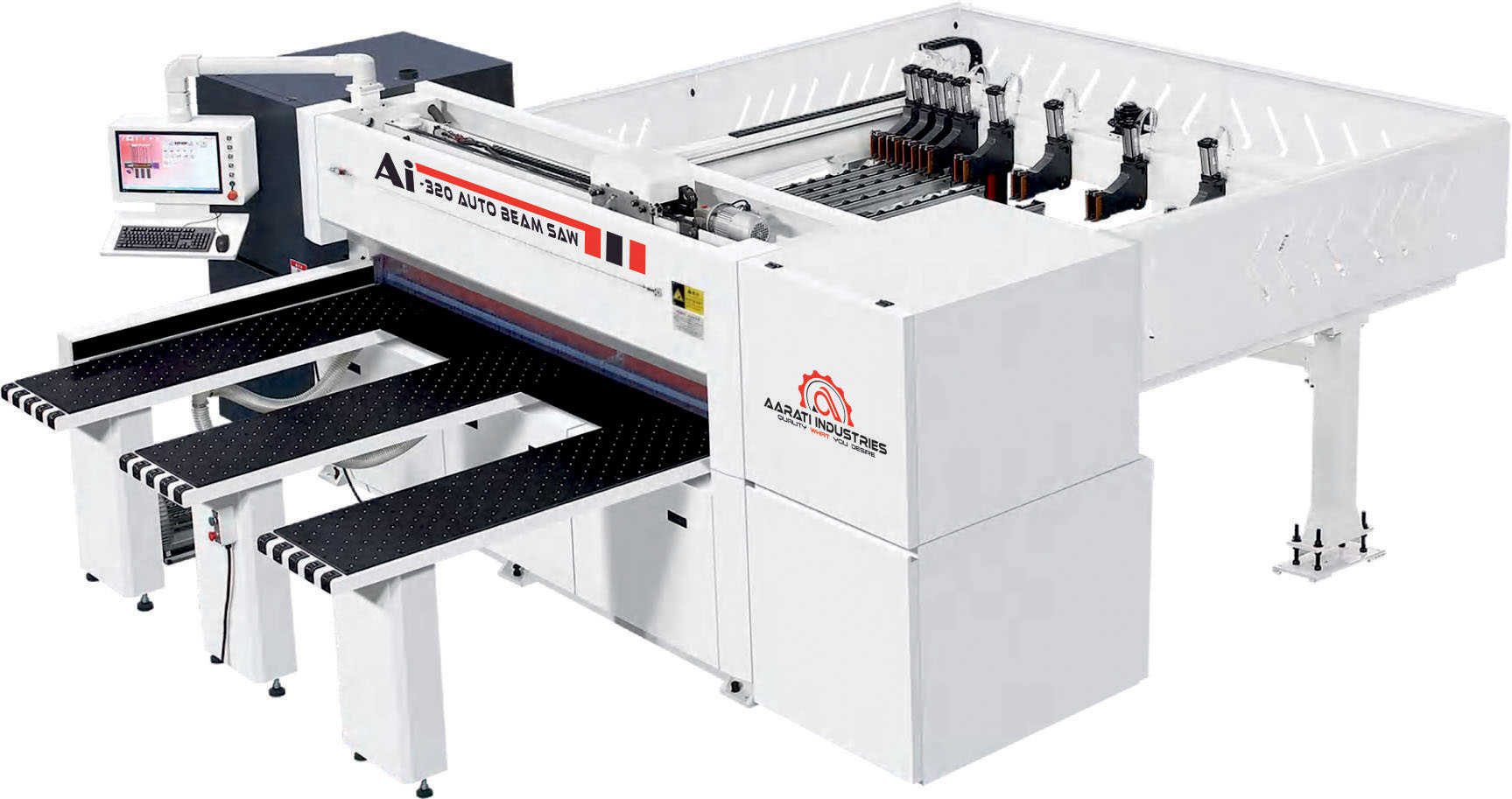

Ai-320

Salient Features

  • Hi-tech saw carrige with high speed rate can be adjucted between 0-100 mtr/min with high accurancy cutting
  • Robust, advanced balanced structure offering high stability and guarantees precision & rigidity.
  • Automatic lubrication system which increase life span of parts

Techinical Specifications

Max Cutting Length 3200mm
Max cutting thickness 100mm
Main Saw Blade Size 400/60mm
Main Saw Shaft Rotation Speed 4000rpm
Scoring Saw Blade Size 180/30mm
Scoring Saw Shaft Rotation Speed 6900rpm
Saw Carriage Forward Speed 100m/min
Saw Carriage Backward Speed 150m/min
Main Saw Motor 16kw
Saw Carriage Backward Speed 2.2 kw
Automatic Feeding Motor 1kw (servo)
High-Pressure Blower Motor 3 kw
Side Aligner Motor 0.25kw
Air Floating Table Quantity 3 Qty
Total Power 22.45 Kw
Automatic Feeding Speed 100m/mm
Air Pressure 5-7 kg/cm
Worktable Height 960mm
Net Weight 5000kg
Machine Dimension 6000x6000x1500 mm
