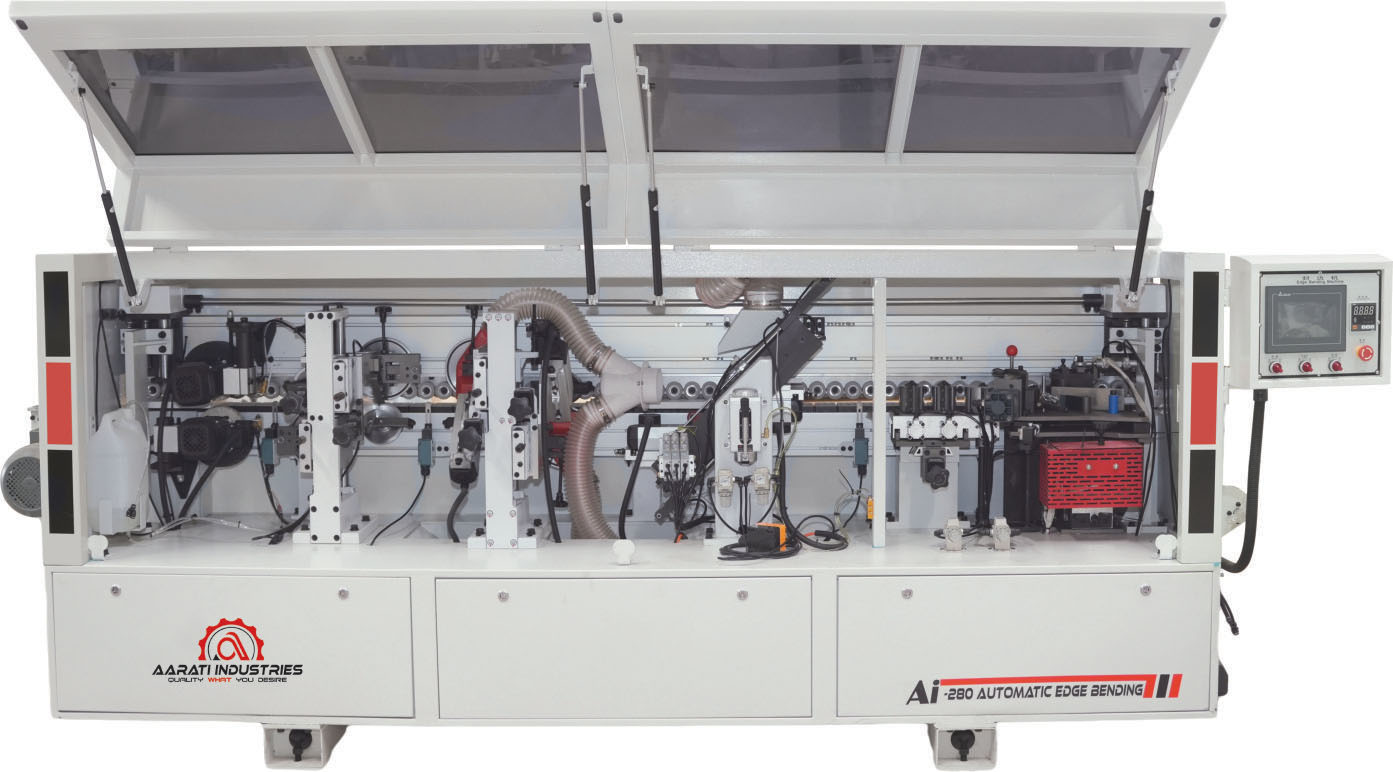

Ai-280

Salient Features

  • Stabilized production even at max feeding speed of 25mtr/min due to sturdy machine structure
  • Smart touch PLC Control Panel for convenient use.
  • Automctic up-down movement of pressure beam for thickness setting.
  • in-built safety AIR Tank to avoid dropping of air pressure during process.

Technical Specifications

Working Thickness 10-60mm
Min. Working Width 60mm
Min. Working Length 150m
Band Strip Thickness 0.4-3mm
Feeding Speed 12-16-20m/min
Working air Pressure 6 to 8 kg/cm2
Total Motor Power 9 kw
Machine Dimension (L x B x H) 3040 x 700 x 1240 mm
Approx Net Weight 1000kg
