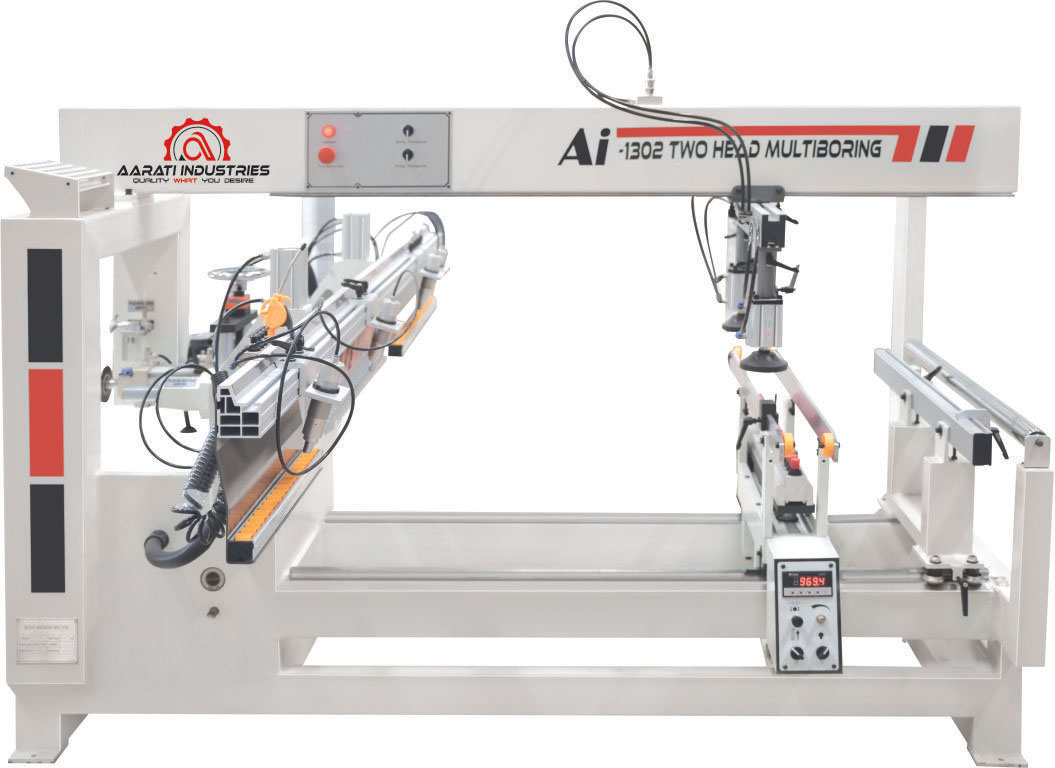

Ai-1302 Two Head

Salient Features

  • Easy Setting of workpiese with instant & precised boring
  • User friendly smart touch PLC control Panel
  • Single vertical heads. sliding and rolling guides, rotate by 90

Technical Specifications

Max. Drill Diameter Max 35 mm D=13 mm
Max. Drilling Depth H Max = 60 mm
Max. Processing Pitch Max. (LxB) 1300x640mm
Min. Processing Pitch Min.(LxB) 135 x 32mm
External Size 2300x 2500 x 1560
Pitch of Drill Head 10mm
Spindle Speed 2840 rpm
Total Number of Drill Shaft 21x2=42
Total Power of Motor 3kw
Weight 750 kg
Packing Size 2580x1300x1750
